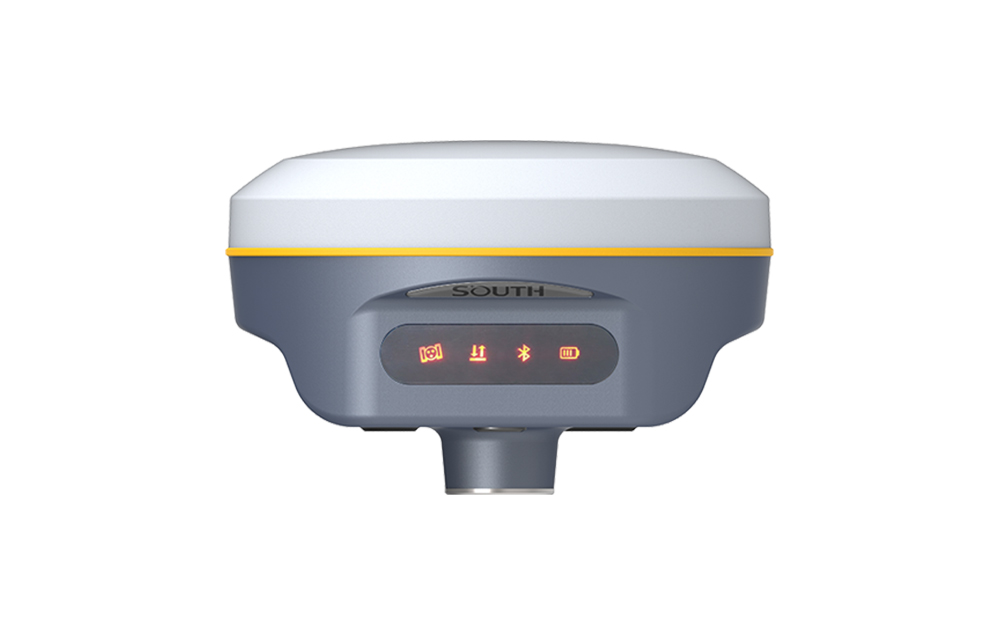

gnss rtk reciever in pakistan - south galaxy g2

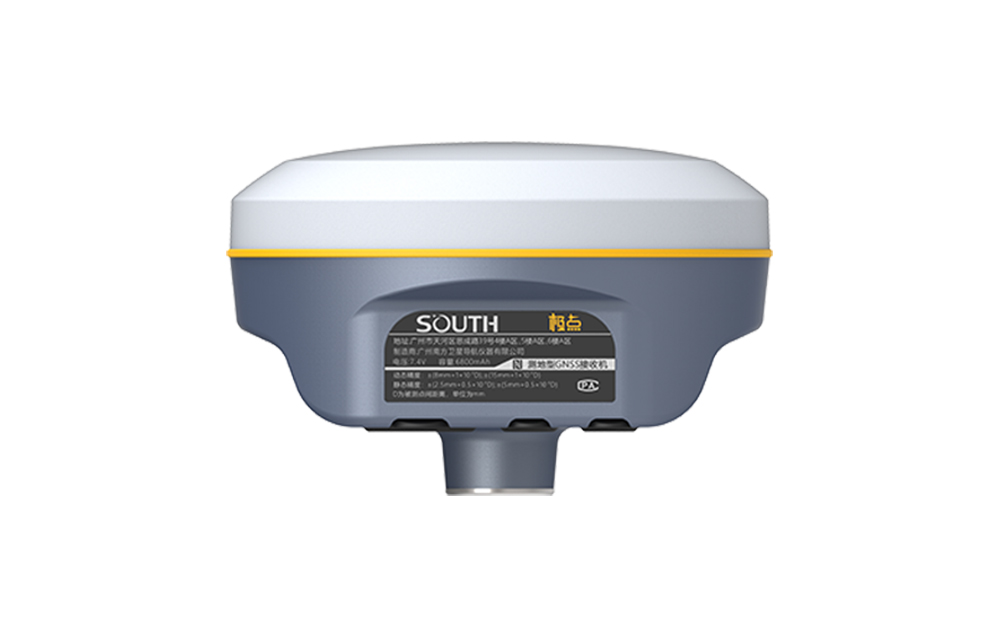

South Galaxy G2 - Image 2

South Galaxy G2

  • The extraordinary inbuilt radio
  • Ultimate goals of full signals tracking
  • Worry-free surveying
  • The fact moving ahead into the future
  • Measure whatever you want
  • Smart reminder of base station attitude
Category:

GNSS RTK Receiver in Pakistan – South Galaxy G2

Skyxotech is engaged in providing a high-quality range of South Galaxy 2 GNSS RTK in Pakistan. South Galaxy G2 product is developed from the optimum grade material and sophisticated technology keeping in mind international standards. Galaxy G2 is integrated with a new generation IMU module which makes tilt measurement more stable, accurate, and fast without strict leveling of the receiver to measure the point at will, it helps surveyors boost productivity by 30 percent. With a highly integrated and layered design, Galaxy G2 is smaller than typical Galaxy series receivers. And thanks to its magnesium alloy body, the G2 weighs only 850 grams including the internal battery, making it extremely light and convenient to carry.

Specification

Channels 965
gps L1, L1C, L2C, L2P, L5
Positioning output rate 1Hz~20Hz
Initialization time < 10s
Initialization reliability > 99.99%
Shock/Vibration Withstand 2 meters pole drop onto the cement ground naturally
power supply 6-28V DC, overvoltage protection
Battery Inbuilt 6800mAh rechargeable, removable Lithium-ion battery
Internal UHF 1W radio receiver and transmitter
data transmission Plug and play mode of USB data transmission
Supports FTP/HTTP data download
Electronic bubble Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time
IMU Built-in IMU module, calibration-free and immue to magnetic interference

Download


     South Galaxy G2
