South INNO7

South INNO7

  • 5G, brings you an outstanding future
  • A highway to the era of big data
  • Far Link Protocol
  • 15 KM Just use the inbuilt radio only

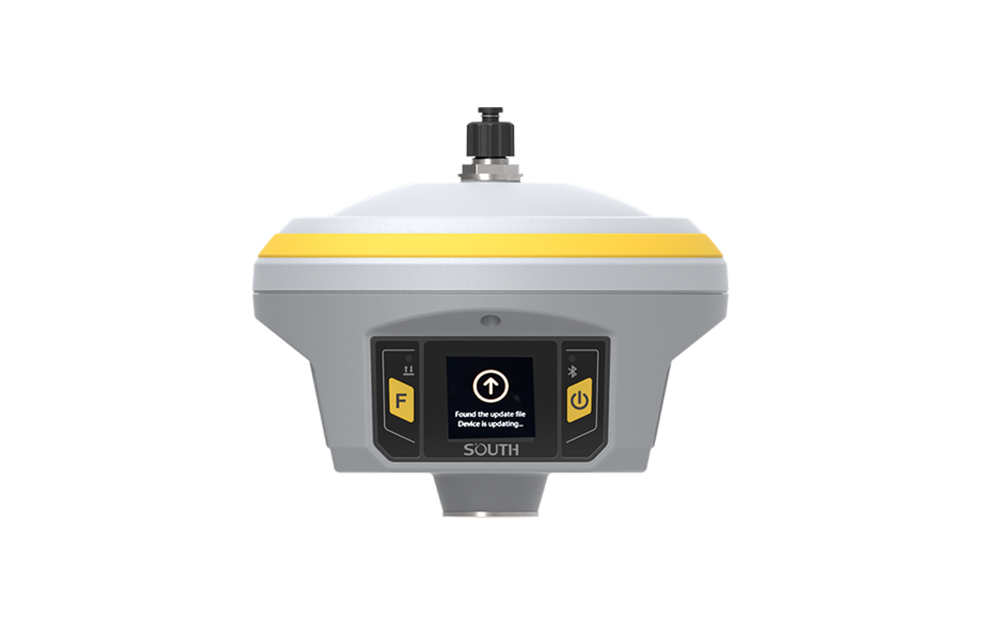

  • Touch Screen Interaction
  • HD 1.54 inch color LCD touch screen

GNSS RTK  in Pakistan – South INNO7

Skyxotech offers South INNO7 in Pakistan. South INNO7 is equipped with a high-speed 5G full Netcom module, which supports the latest 5G communication network and gives the RTKs high-speed information interaction and wider expansion space in the big data era. Based on intelligent PPP dial-up technology, South INNO7 realizes automatic dialing in real-time and keeps online during working.

INNO7 adopts an internal radio with 3W maximum transmission power to achieve the typical working range of 15km through the “Far-link” protocol.

Specification

Channels 336
GPS L1C/A, L1C, L2C, L2E, L5
BDS B1, B2, B3
GALILEOS E1, E5A, E5B, E5AltBOC, E6
SBAS L1C/A, L5 (Just for the satellites supporting L5)
IRNSS L5
QZSS L1C/A, L1 SAIF, L2C, L5, LEX
MSS L-Band Trimble RTX[1]
Positioning output rate 1Hz~50Hz
Dimension 15.3cm(φ)×10.6cm(H)
Weight 1.2kg (battery included)
Material Magnesium aluminum alloy shell
